Custom Insole Module

The desktop CAD engine for custom insoles is ready and undergoing field validation in pilot clinics. Metatarsal and heel regions are selected, a shell is built, the surface is sculpted, and production files are exported for both 3D printing and CNC blank milling. Material selection and regional stiffness stay with the clinician.

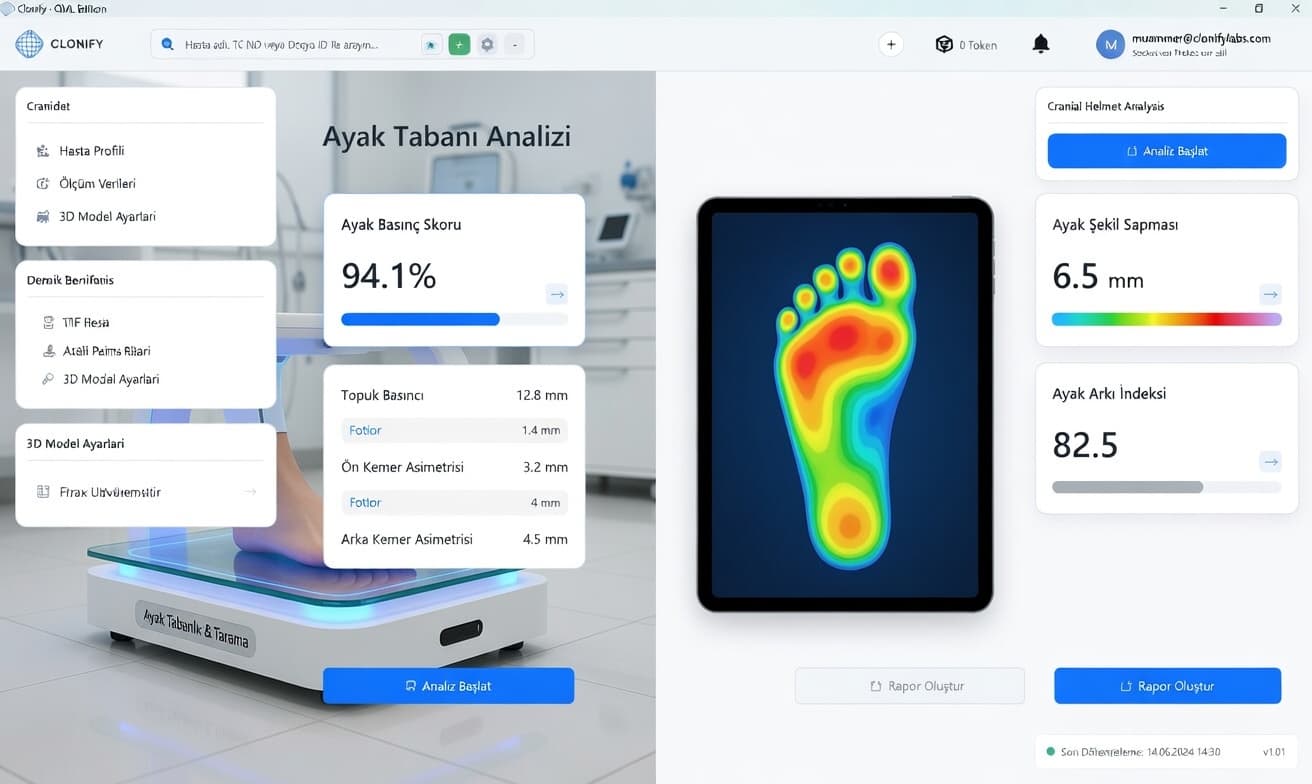

Custom Insole Module

Key Features

  • Foot scan import and alignment (PLY, STL, OBJ, CPX, VTP)
  • Metatarsal, medial arch and heel region select
  • Regional shell thickness and posting height
  • Brush-based surface sculpting
  • Clinician-approved regional stiffness
  • 3D printing (STL/OBJ) and CNC blank milling file export

Region select

Shell

Sculpt

1Clinical Solution & Flow

The clinical problem it targets

Custom insoles run into two difficulties at once. The first is the impression: a foam box or plaster negative changes with the position the foot is pressed in, and that difference yields two different insoles for the same patient. The second is the record: nothing writes down how much support a hand-shaped insole gave in which region, so six months later the decision starts from scratch.

The module targets both points: keeping the scan as a digital record and writing regional interventions down as parameters. The desktop engine and workflow are ready, with field validation ongoing in pilot clinics.

2Clinical Solution & Flow

The planned workflow

In the designed flow the foot scan is imported and aligned to the plantar plane. The clinician marks the metatarsal heads, medial arch and heel; posting height and shell thickness are set per region. The surface can then be raised or lowered locally with a brush tool.

In the final step the clinician approves the stiffness distribution and the material choice. That decision is not handed to the software: the same geometry printed in rigid resin and printed in TPU is a different device. The production file is exported after approval.

3Clinical Solution & Flow

Intended measurements and output

On the manufacturing side, the module produces both solid/lattice STL/OBJ files for 3D printers and positive surface data for CNC carvers milling EVA blanks. Clinics can select additive 3D printing or CNC milling output depending on their shop infrastructure.

On the measurement side we plan to write scan-derived values such as foot length, width and arch height into the case file, so the next insole starts from a recorded measurement rather than a remembered impression. The workflow is being validated across real clinical cases with pilot partner clinics.

Insoles

Insoles

Steps of the desktop Insoles workspace: region selection, shell, surface sculpting, and 3D print / CNC blank production export.

  1. 1

    Import

    The foot scan (PLY/STL/OBJ/CPX/VTP) is loaded.

  2. 2

    Insole region

    Metatarsal and heel regions are selected.

  3. 3

    Crop

    Insole bounds are cropped.

  4. 4

    Insole shell

    The insole shell is built.

  5. 5

    Sculpt

    The surface is edited with a brush.

  6. 6

    Export

    3D print or CNC blank milling production file is exported.
