Cranial helmet therapy: a digital workflow for plagiocephaly and brachycephaly

HomeCranial Helmet Module

The treatment window is short, so waiting time matters.

The optimal window for treating plagiocephaly and brachycephaly is months 4 to 8. With Clonify, a contactless scan replaces the plaster mould; measurement and helmet design happen in the app, and the production STL is released after clinician approval. The wait is shorter because the moulding and manual shaping steps are gone.

Why is speed so critical?

Helmet therapy works with the infant's rapid skull growth. The optimal window is months 4–8, and every week spent in the plaster process comes out of it. Outcomes are markedly better when treatment starts early.

Months 4–8

Optimal treatment window

10–18 days

Average delivery in the plaster process

No plaster

Contactless scan with Clonify, one session

For families

Worried about your baby's head shape?

Flat head syndrome (plagiocephaly) is common in infants and can be managed successfully when addressed at the right time. In clinics using Clonify, the process is far more comfortable for your baby.

No plaster cast

Your baby's head is never cast in plaster. Measurement is completed in a single session with a contactless 3D scan that takes seconds.

Objective measurement, clear information

Head asymmetry is measured millimetrically with international metrics such as CVAI and cephalic index — and reported to you.

You see the progress together

At every check-up, the new scan is automatically compared with the previous one; you follow your baby's progress in numbers and visuals.

Goal: quick delivery

Because the treatment window is narrow, speed matters. The digital process targets helmet delivery within days.

HSC analysis, HSD helmet: the desktop steps

The four views below map to desktop workspace steps. The numbers are from the sample report; the mesh is a downsampled PLY of the same case.

  1. 1Import
  2. 2Slice
  3. 3Cranial
  4. 4Export

01 · Import

Head analysis and helmet · import

The head scan loads as PLY or STL. The point cloud on screen is made of the sample file's real vertices.

Workspace
HSC + HSD
Step
Import

Real sample scan — measurements from the 19 Aug 2026 cranial report

  1. 1. Import — Head analysis and helmet · import

    The head scan loads as PLY or STL. The point cloud on screen is made of the sample file's real vertices.

  2. 2. Slice — Slicing · anthropometry

    After alignment, CVAI, cephalic index, CVA and circumference are measured on Z slices. The heat map compares the two sides of the mid-sagittal plane and shows flattened and bossed areas.

  3. 3. Cranial — Target head · 10 mm growth allowance

    A future head is built from target CVAI/CI. To leave room for growth, the helmet's inner surface stays at least 10 mm outside the scan everywhere.

  4. 4. Export — Validate / STL

    In this step the fit is checked and the orthotist approves; the clinical PDF and STL are then exported. Zones (1.5–2.5 mm active / 6–8 mm passive) and assembly (holes, lid, hinge) finish the helmet.

Head Socket Analyses

Head analysis (HSC)

The scan is imported, aligned to the anatomical plane, sliced, photographed and compared with a previous scan. The PDF report is also produced here.

  1. 1

    Import

    An open-format (PLY/STL/OBJ/CPX/VTP) head scan is loaded; smoothing, densification and hole/shell repair run in this step.

  2. 2

    Head Alignment

    The model is aligned to the anatomical plane. Ear landmarks are the reference for later trim and helmet lines.

  3. 3

    Head Slicer

    CVAI, cephalic index, circumference and diameters are measured on Z slices. Sample report: CVAI 6.1% · CI 87.6% · CVA 8.6 mm · circ. 438.1 mm.

  4. 4

    Cranial Photo Capture

    Clinical photographs are bound to the same file as the scan and embedded in the report.

  5. 5

    Head Comparison

    Two scans side by side: anthropometry, asymmetry, volume and a live slice. The PDF report is produced here.

Head Socket Design

Helmet design (HSD)

From the aligned scan: target shape, clearance, shell, assembly and STL export. CVAI/CI are measured during helmet design.

  1. 1

    Import

    The same scan file is opened for helmet design.

  2. 2

    Head Alignment

    Alignment from analysis is kept or repeated.

  3. 3

    Cranial

    The current head is measured. A future head is built from target CVAI/CI; the helmet inner surface stays at least 10 mm outside the scan (growth allowance).

  4. 4

    Zone / Clearance

    Active (1.5–2.5 mm) and passive (6–8 mm) clearance bands are applied to the target shape.

  5. 5

    Shell / Offset

    The liner inner-surface offset and an editable trim loop are set; the cut itself is made separately with Apply Crop.

  6. 6

    Assembly

    Tools for holes, the lid, a dual symmetric lock mechanism and a circumferential separation cut sit in this step, each on its own tab.

  7. 7

    Validate / Export

    Fit check, orthotist approval, clinical report and STL export.

For clinicians

Cranial analysis, helmet design and reports in the same app

Many clinics use separate programs for analysis and design. In Clonify, measurement is automatic, the clinician approves the helmet design, and the report for the family or physician comes from the same case.

System suggestedClinician approved

Automatic anthropometry

The head model aligns automatically to the anatomical plane, and CVAI, cephalic index, circumference and diameters are calculated automatically. Severity classification and clinical decisions belong to the clinician.

Treatment comparison report

Pre- and post-treatment scans are compared automatically. A PDF or Excel report takes one click, and you can share it with the referring physician.

Guided helmet design

The software proposes the design step by step. You decide on relief and pressure zones and the trimline.

No CAD expertise required

Our target: ≤8 hours of training, first unassisted device within ≤5 workdays. We co-design the first 10 devices with you remotely.

Comparison

See the plaster process and the digital process side by side

Plaster workshop on the left, digital workflow on the right.

Traditional workshop with plaster molds and a dusty workbench

Plaster process

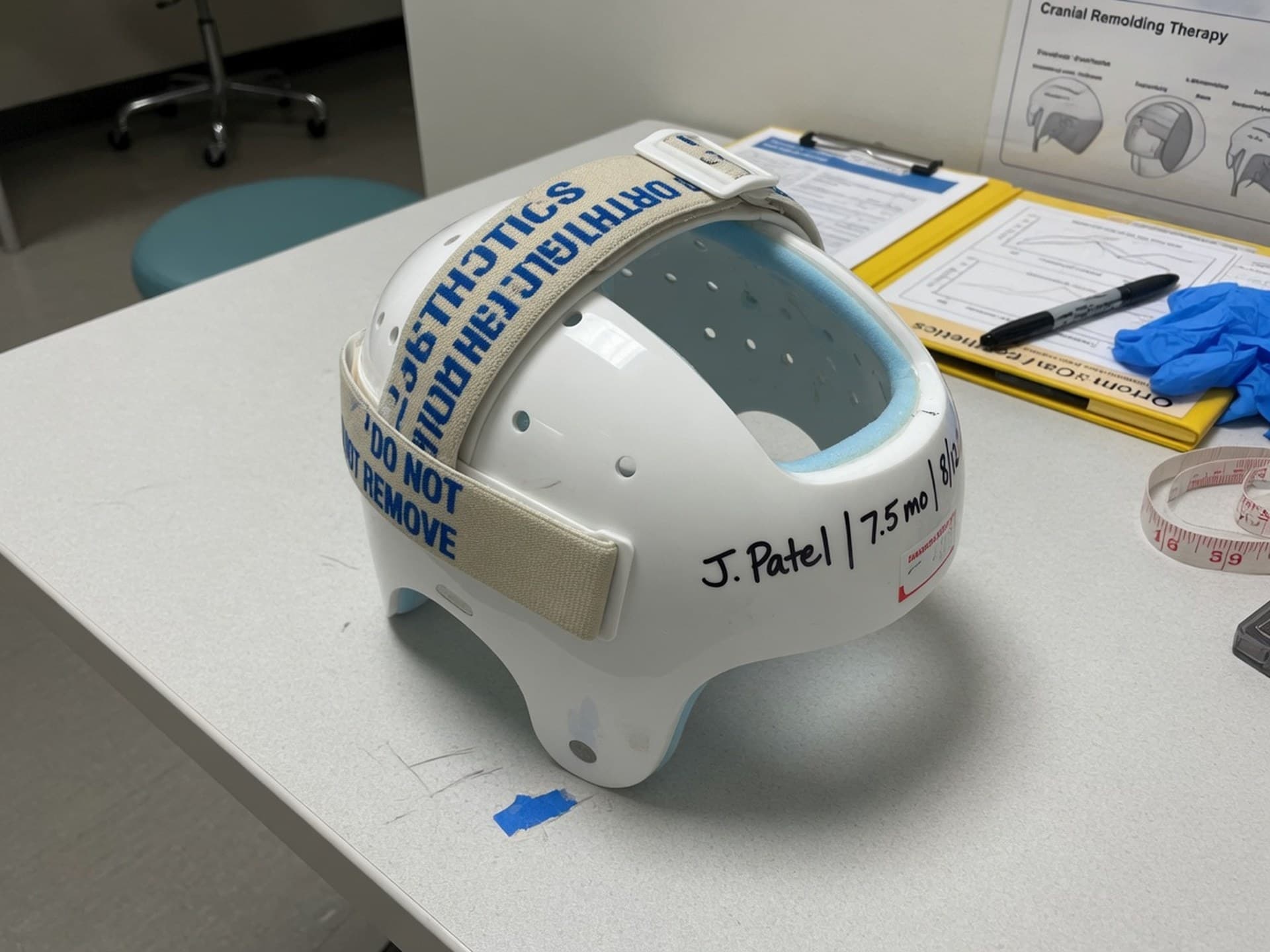

A 3D-printed cranial remolding helmet on a clinic table

Clonify process

Sample clinical report

A cranial evaluation report produced by the desktop app

Download PDF

Clonify desktop export dated 19 Aug 2026 (kafa1.ply). The name line is the sample 'example'; this is not a diagnosis. Measured values: CVAI 6.1% · cephalic index 87.6% · CVA 8.6 mm · slice circumference 438.1 mm. Severity classification is the clinician's call.

MetricValueNote
CVAI6.1%Measured value — classification is clinical
Cephalic index87.6%ML 129.1 / AP 147.4 mm
CVA8.6 mmA 149.8 · B 141.2
Circumference438.1 mmAP 147.4 · ML 129.1

The report is exported as PDF from the desktop app and shared with the physician and family.

Clonify CAD — HSC Slicer & Comparison
HSC
Clonify cranial analysis and comparison CAD interface
Millimetric contour difference analysis and quadrant symmetry from Z=0 base to apex.

Let's assess your cranial workflow together in 30 minutes

Bring a scan of your own patient to the demo; see the analysis report and design flow on your own case.

The plaster-era delivery time is a field average. Delivery time with Clonify is being measured in pilot clinics; results will be published on the Evidence page. The treatment decision always belongs to your physician and clinician.
